CAT6 Shielded RJ45 Copper Patch Cable

Facebook   Twitter   Delicious   Google   My EC21   Email this page   Report Item Inquire now

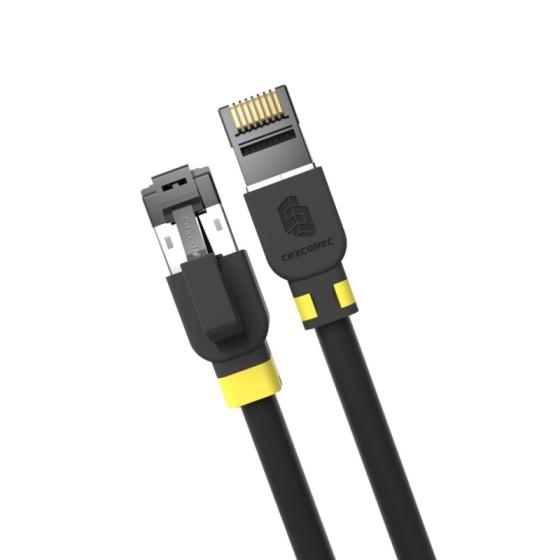

CAT6 Shielded RJ45 Copper Patch Cable

Click to enlarge image

 Origin

China

 Model Number

60-UF-02-BK-0100-05

 Brand Name

Crxconec


Cat.6 STP structured cabling cable offers an additional layer of protection with screening wrapped around the individual twisted wires. This protects against EMI/FRI and crosstalk. CRXCONEC Category 6 shielded patch cord can support 10 / 100 / 1000 Mbps Ethernet, it provides performance of up to 250 MHz. CRXCONEC Cat.6 FTP patch cord with beautiful changeable color clip design provides smart color control, available in 7 colors! If you want to OEM special color, it is also available! Our category 6 patch cords are UL certified and ETL verified, RoHS & REACH compliant. 100% component test for category RJ45 patch cord guarantee the quality!

Features
  • Follow ANSI/TIA-568.2-D.
  • Colorful Clips boot allows users to identify cable easily.
  • Reduce colorful patch cord stock by color clips.
  • UL Certified & ETL verified.
  • ROHS compliance.
Cat.8 scorpion patch cord can assembly your own color clips, it makes your patch cord more easily to identify, you can change it by yourself.
Cat.8 scorpion patch cord can assembly your own color clips, it makes your patch cord more easily to identify, you can change it by yourself.

Applications

Cat.6 FTP patch cord used in structured cabling for Ethernet, this cable standard provides performance of up to 250 MHz, suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T (Gigabit Ethernet). It could apply with different outlet such as computer, notebook, wifi-access…etc.

CRXCONEC patch cord usually combined with patch panel served in the data center. When our patch cord with patch panel put in the rack cabinet, CRXCONEC patch cord is much easier to identify.
CRXCONEC patch cord usually combined with patch panel served in the data center. When our patch cord with patch panel put in the rack cabinet, CRXCONEC patch cord is much easier to identify.
OEM Availability

CRXCONEC Scorpion Patch Cord can put your logo on the molding place, latch, and also on the outer jacket.

OEM Availability

The color clips are changeable, you may change the clips by yourself to make your patch cord more easier to recognize, and it is also more good looking.

The color clips are changeable, you may change the clips by yourself to make your patch cord more easier to recognize, and it is also more good looking.


Characteristics
Insertion Force30N max. (IEC 60603-7)
Retention Strength7.7kg between jack and plug
Operating Temperature-10°C to 60°C (ISO/IEC 11801, ANSI/TIA/EIA568.2-D)
Mating Cycles750 cycles minimum
Material

Conductor Material: Bare copper
Jacket Material: PVC or LSZH
Plug Material: 94V2 or V0

Our Guarantee

We provide superior quality patch cord to our customers. We suggest using only 50U” gold plating on the RJ45 connectors for all of our copper patch cords to make sure the quality is stable and pass the durability test per IEC 60603-7 standard. We do 100% component test on patch cord to guarantee our quality, we have over 35sets fluke in our production line!

Our Guarantee

Packaging

CRXCONEC patch cord gathers 200PCS/300PCS/400PCS into one carton, it depends on the length of the wire, we can put our patch cord into boxes tidy and efficiently.

Packaging

Purchase Information
  • Price Term: FOB Taiwan or FOB Ningbo
  • Payment Term: T/T, credit card, or pay pal
  • MOQ: 3,000M/color
  • Lead Time: 4-5 weeks after order confirmation



  Certificates Certificate Name Certificate Number
UL

E507372
